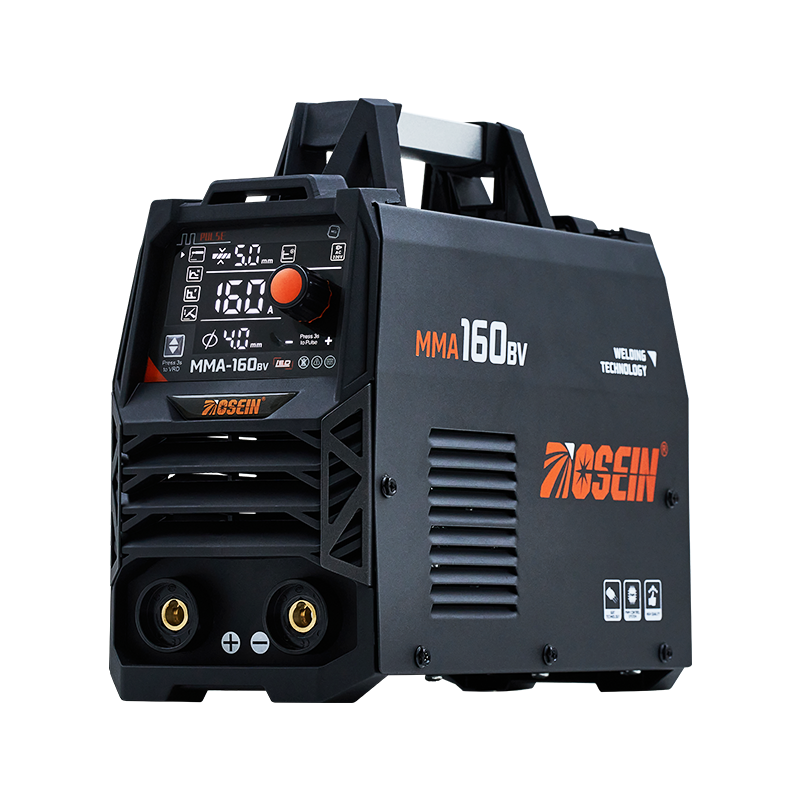

MMA-140BV/160BV/200BV affordable welding machine. South America 110V/220V lift tig vrd pulse

Technical Characteristics
Advanced (IGBT) inverter technology.

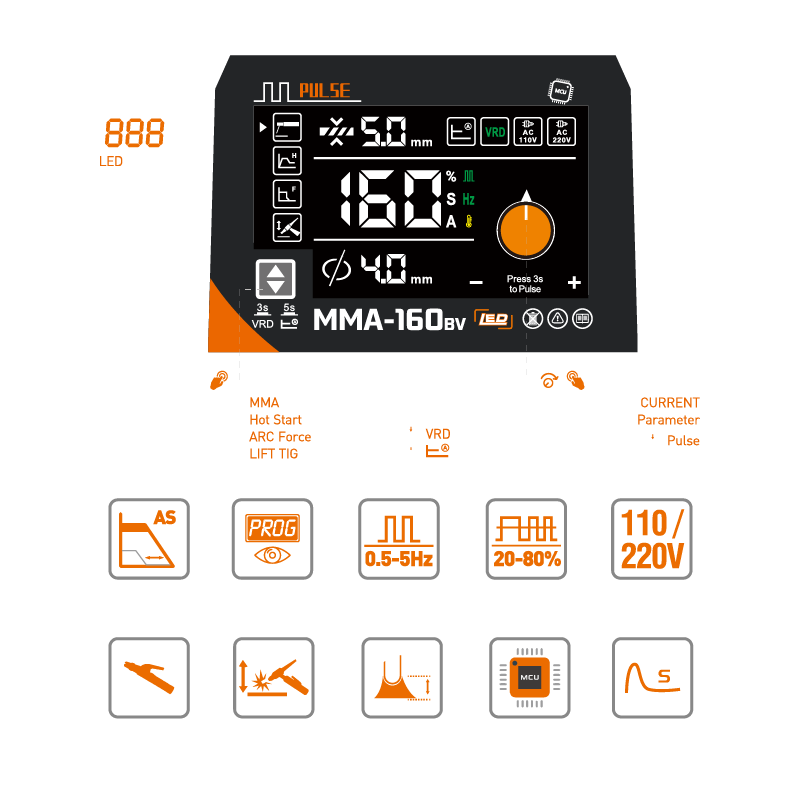

Large view Digital LED Display.
Anti-stick, hot-start, and Arc-force built in.
VRD (Voltage Reduction Device)
Suitable for welding different kinds of materials, such as carbon steel, alloy steel, and stainless steel etc.

Inquiry
PREV：MMA-140/160/180/200h igbt pulse mma inverter welding 7018 electrode rod VRD NEXT：MMA-200/230Plus 3 pcb high duty cycle electric welding machine hot start anti stick arc force
  • Product Parameter
  • Contact Us
ITEM MMA-140BV MMA-160BV MMA-200BV
Funtion MMA MMA MMA
Input Voltage(V) 110 220 110 220 110 220
Input Frequency(Hz) 50/60 50/60 50/60 50/60 50/60 50/60
I1 max (A) 40 30.1 41.9 34.8 39.8 45
I1 eff (A) 24.9 13.4 32.4 22 22.7 22.7
Duty Cycle 60% 100% 60% 100% 60% 100% 60% 100% 60% 100% 60% 100%
(25°C 10min) 120A 93A 140A 108A 120A 93A 160A 124A 120A 93A 200A 155A
Duty Cycle 40% 60% 100% 20% 60% 100% 60% 100% 40% 60% 100% 60% 100% 30% 60% 100%
(40°C 10min) 120A 98A 76A 140A 81A 63A 120A 93A 160A 130A 101A 120A 93A 200A 141A 109A
No load Voltage(V) 63 67 66 66 64 64
Output Range(A) 20-120 20-140 20-120 20-160 20-120 20-200
Electrode(mm) Φ2.5Φ3.2 Φ2.5Φ3.2Φ4.0 Φ2.5Φ3.2 Φ2.5Φ3.2Φ4.0 Φ2.5Φ3.2 Φ2.5Φ3.2Φ5.0
Efficiency(%) 83 85 86 86 87.1 84.9
Power factor 0.82 0.68 0.82 0.68 0.8 0.68
Insulation class F F F
Protection class IP21S IP21S IP21S
N.W.(kg) 3.7 3.8 4.3
L x H x W(cm) 31.5x13x25.5 31.5x13x25.5 36x15x28
Code 180011 180012 180013
