MIG-160/180/200SP single pulse muti-functions LCD display 220V new model

HOME / PRODUCTS / MIG/MAG WELDING MACHINE / MIG-160/180/200SP single pulse muti-functions LCD display 220V new model
  • MIG-160/180/200SP single pulse muti-functions LCD display 220V new model
  • MIG-160/180/200SP single pulse muti-functions LCD display 220V new model
  • MIG-160/180/200SP single pulse muti-functions LCD display 220V new model
  • MIG-160/180/200SP single pulse muti-functions LCD display 220V new model

MIG-160/180/200SP single pulse muti-functions LCD display 220V new model

Technical Characteristics
MCU Control, advanced IGBT Inverter Technology

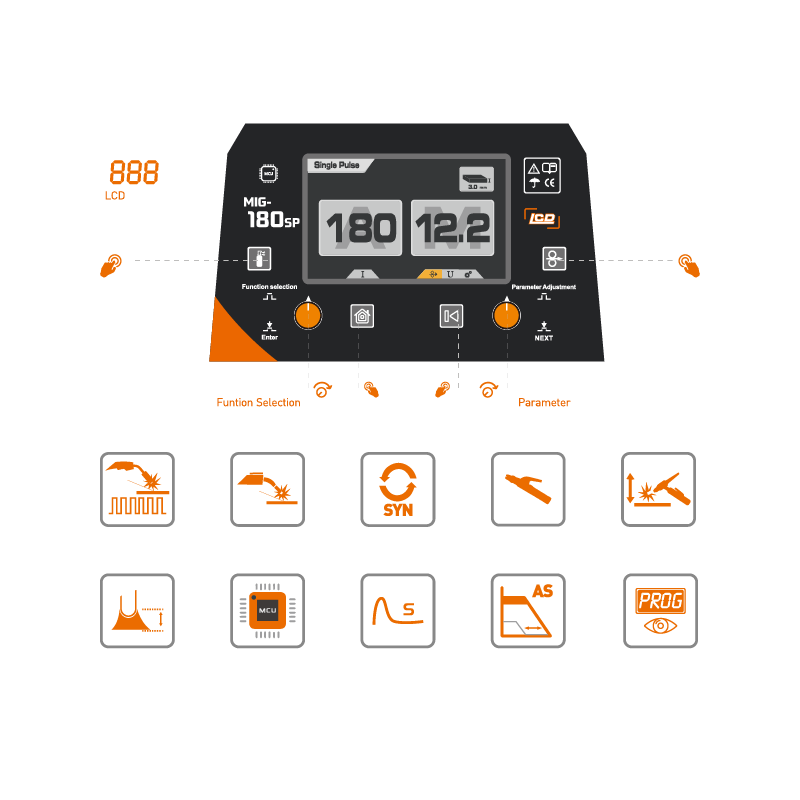

Large view digital LED display.
Synergic & Manual MIG Control.
Single-pulse MIG for welding aluminum.
Gas & No Gas, fit for 1KG & 5KG Wire Spools.
MIG/MMA/LIFT TIG multi-functions.

Inquiry
PREV：110V 220V MIG-200BV welding equipment Dual voltage overheat protection NEXT：MIG-160/180/200DP double pulse for aluminum LCD new Multi-Process Welder
  • Product Parameter
  • Contact Us
ITEM MIG-160SP MIG-180SP MIG-200SP
Funtion MIG MMA MIG MMA MIG MMA
Input Voltage(V) 220 220 220 220 220 220
Input Frequency(Hz) 50/60 50/60 50/60 50/60 50/60 50/60
I1 max (A) 30 34 34 38.4 43.3 45.9
I1 eff (A) 15 15.2 21.6 21 21.6 22.9
Duty Cycle 50% 60% 100% 40% 60% 100% 60% 100% 60% 100% 60% 100% 45% 60% 100%
(25°C 10min) 160A 146A 113A 160A 130A 101A 180A 139A 180A 139A 200A 155A 200A 173A 134A
Duty Cycle 25% 60% 100% 20% 60% 100% 45% 60% 100% 30% 60% 100% 25% 60% 100% 25% 60% 100%
(40°C 10min) 160A 103A 80A 160A 93A 72A 180A 156A 121A 180A 127A 98A 200A 129A 100A 200A 129A 100A
No load Voltage(V) 57 57 57 57 57 57
Output Range(A) 20-160 20-160 20-180 20-180 20-200 20-200
Wire/Electrode(mm) Φ0.6 Φ0.8 Φ0.9 Φ1.0 Φ1.2 Φ2.5 Φ3.2 Φ4.0 Φ0.6 Φ0.8 Φ0.9 Φ1.0 Φ1.2 Φ2.5 Φ3.2 Φ4.0 Φ0.6 Φ0.8 Φ0.9 Φ1.0 Φ1.2 Φ2.5 Φ3.2 Φ4.0 Φ5.0
Efficiency(%) 84 85.2 82.3 83.6 84.3 85.4
Power factor 0.68 0.68 0.61 0.61 0.68 0.68
Insulation class F F F
Protection class IP21S IP21S IP21S
N.W.(kg) 9.6 10.4 10.6
L x H x W(cm) 46.5x20.5x35 46.5x20.5x35 46.5x20.5x35
Code 280014 280015 280016
